PRODUCT RANGE
I-TECH™ BULLSEYES
a range of subsea inclinometers to suit all applications

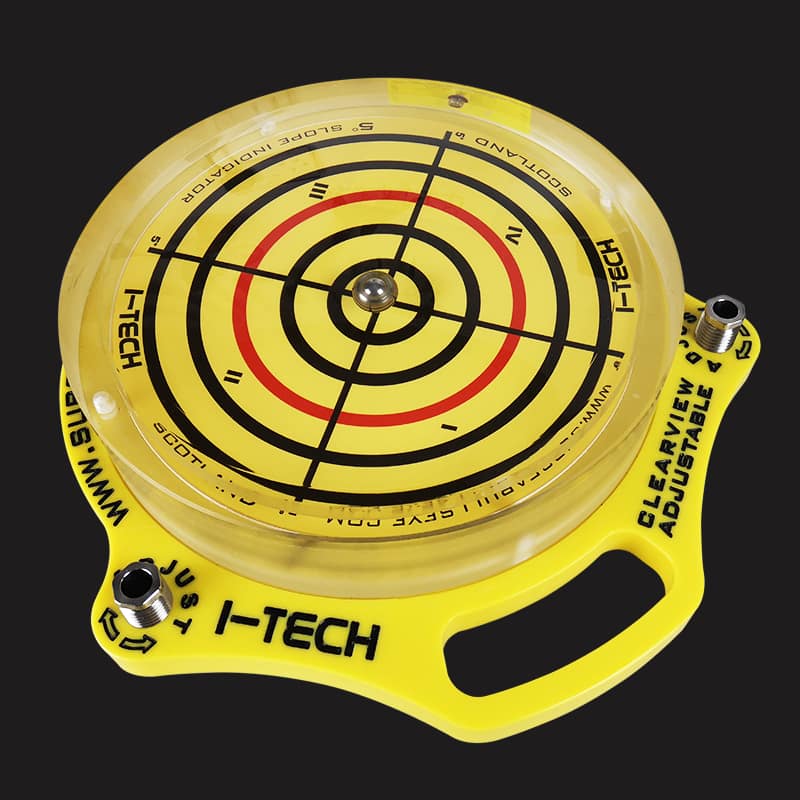

CLEARVIEW™
MOUNTING SYSTEMS
easy mounting and calibration solutions for bullseyes

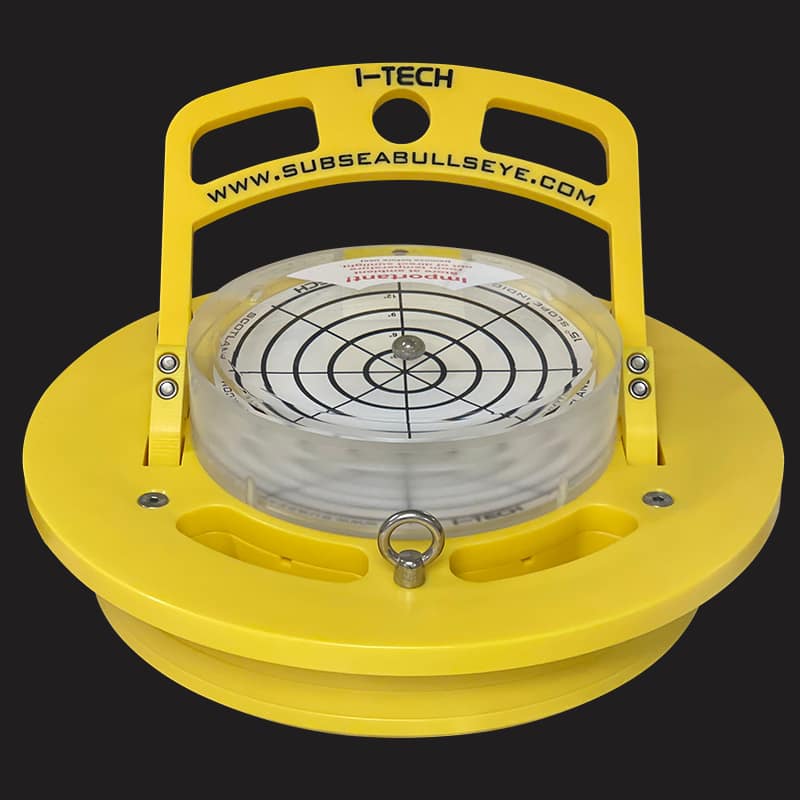

CUSTOM
SOLUTIONS
don't see what you need?
no problem...

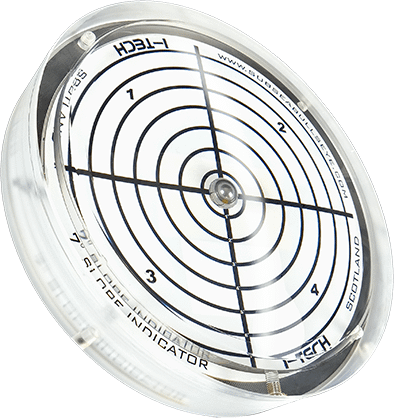

I-TECH™ Subsea Bullseyes are INDUSTRY LEADING slope indicators / inclinometers used to measure the incline angle of subsea structures and equipment
INSTALLED ON SUBSEA EQUIPMENT SUCH AS RISERS, WELLHEADS AND BLOW OUT PREVENTeRS
MAINTENANCE-FREE MECHANICAL DEVICES READ BY ROV OR SUBSEA CAMERA
<
>
KEY FEATURES
SIZE
OPTIONS
MEASUREMENT
OPTIONS
PRESSURE TESTED
ANTI-SILTING
DOMED TOP
POLYMER CONSTRUCTION
LOW
COST
MAINTENANCE FREE
FAIL-SAFE
ROBUST
PRECISE

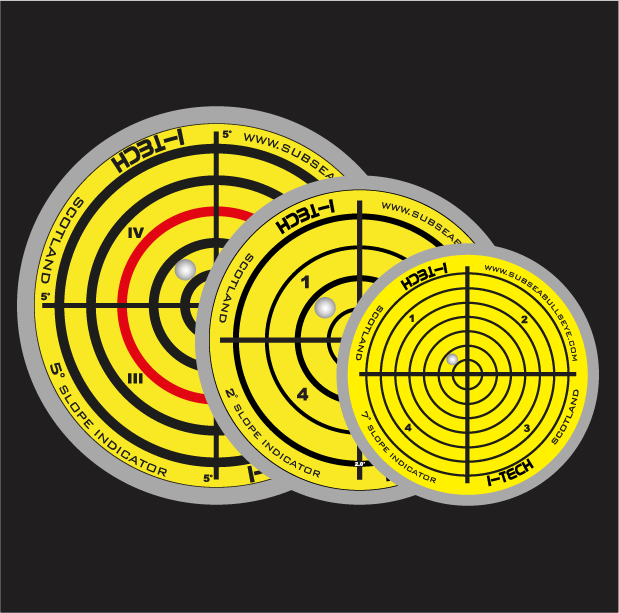

SIZE OPTIONS
OUR STANDARD RANGE OF BULLSEYES ARE AVAILABLE IN A VARIETY OF DIAMETERS:
Ø100MM / Ø150MM / Ø250MM / Ø350MM
CLICK HERE To SEE THE STANDARD RANGE
NEED ANOTHER SIZE? GO TO CUSTOM SOLUTIONS
MEASUREMENT OPTIONS
BULLSEYES CAN BE SUPPLIED WITH VARIOUS ANGLE MEASUREMENT RANGES:
0° > 2° / 0° > 3° / 0° > 5° / 0° > 7°/ 0° > 10°/ 0° > 15°
CLICK HERE TO SEE THE STANDARD RANGE
NOT SEEING WHAT YOU NEED? GO TO CUSTOM SOLUTIONS
PRESSURE TESTED
I-TECH Subsea Bullseyes are designed to withstand pressures greater than 600bar (60MPa).
Bullseyes are annually type tested BY AN INDEPENDENT TEST LAB to 6000m (20,000ft) to ensure they are meeting this benchmark.
CLICK HERE FOR MORE ON QUALITY & TESTING, INCLUDING THE LATEST PRESSURE TEST CERTIFICATE
DOMED TOP
I-TECH SUBSEA BULLSEYES HAVE A UNIQUE DOMED TOP WHICH HELPS MINIMISE SILT BUILD-UP ON THE VIEWING AREA.
CLEANING TIME IS MINIMISED / ELIMINATED, REDUCING ROV OPERATION TIMES DURING INSPECTION
CLICK HERE TO SEE THE STANDARD RANGE
POLYMER CONSTRUCTION
I-TECH SUBSEA BULLSEYES ARE CONSTRUCTED FROM ROBUST POLYMER MATERIALS.
I-TECH BULLSEYES WILL NOT CORRODE LIKE THEIR METAL-BODIED COUNTERPARTS AND ARE ALSO MUCH LIGHTER AND EASIER TO HANDLE.
CLICK HERE TO SEE THE STANDARD RANGE
LOW COST
DON'T COMPROMISE QUALITY FOR COST: I-TECH SUBSEA BULLSEYES DELIVER UNBEATABLE QUALITY ANd robust design at competitive rates.
once installed bullseyes require no power or maintenance so there are no associated running costs when in use.
CLICK HERE TO SEE THE STANDARD RANGE
MAINTENANCE FREE
BULLSEYES ARE MECHANICAL DEVICES AND DO NOT REQUIRE A POWER SOURCE OR ANY ADDITIONAL MAINTENANCE ONCE INSTALLED.
WHEN USED IN CONJUNCTION WITH A CLEARVIEW™ MOUNTING SYSTEM SILT BUILD-UP ON THE VIEWING AREA IS KEPT TO A MINIMUM, ELIMINATING THE NEED FOR CLEANING OPERATIONS PRIOR TO INSPECTION.
CLICK HERE TO SEE THE STANDARD RANGE
FAIL-SAFE
BULLSEYES ARE MECHANICAL DEVICES SO WILL ALWAYS GIVE THE CORRECT READING UNLESS CATASTROPHICALLY DAMAGED - IF THIS IS THE CASE THE DAMAGE WILL BE CLEARLY VISIBLE ON THE BULLSEYE.
IN OVER 25 YEARS OF SUPPLYING BULLSEYES, WE HAVE NEVER RECEIVED A REPORT OF A BULLSEYE THAT HAS FAILED SUBSEA.
FOR MORE ON QUALITY AND TESTING, CLICK HERE
ROBUST
I-TECH BULLSEYES ARE PRODUCED TO THE HIGHEST STANDARDS, WITH QUALITY AND STRENGTH AT THE CORE OF THE DESIGN.
OUR BULLSEYES HAVE BEEN USED BY INDUSTRY LEADERS FOR OVER 25 YEARS WITH NO REPORTED FAILURES.
FOR MORE ON QUALITY AND TESTING, CLICK HERE
PRECISE
when correctly installed, BULLSEYES can achieve a tolerance of ±0.1°.
bullseyes are type tested annually by an independent testing lab to ensure tolerances are met. We also carry out our own in-house quality inspection on every bullseye to ensure our high standards are maintained.
FOR MORE ON QUALITY AND TESTING, CLICK HERE
<
>
x
BACK TO TOP
Manufactured in the UK by ICL Tech Ltd
